EcoComfort Air

The EcoComfort Air actively improves indoor air quality and minimises energy loss as a high-efficiency heat recovery ventilation system. Users typically install this system in single rooms on exterior walls. Therefore, it maintains a comfortable indoor environment by continuously exchanging and filtering air.

Add to enquiry basket

Product Overview

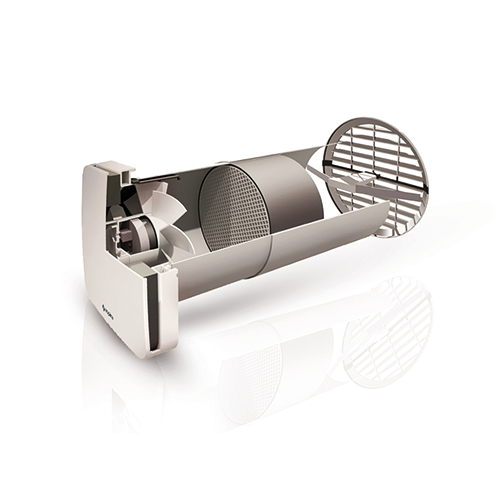

  • The ceramic heat exchanger captures and transfers heat from the supply or extracted air as it flows through the unit, releasing it when the airflow is reversed.
  • The ventilation unit features a DC brushless motor with a reverse function. Therefore, it ensures proper air circulation and exchange within the room.
  • The EcoComfort Air is equipped with an easy-to-access and replaceable G3 filter.

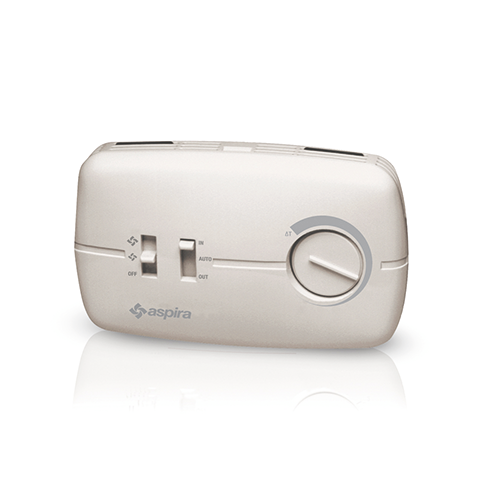

  • The system is controlled by a wall-mounted control unit included in the package.
  • This control unit allows users to select between automatic mode or extraction-only mode. As well as supply-only mode.
  • It also adjusts the fan speed based on the temperature difference between the indoor and outdoor readings.
  • In addition, the control unit can regulate up to four units simultaneously.

Product Features

Heat Recovery Unit and External Grill
  • Ventilating unit with DC motor.

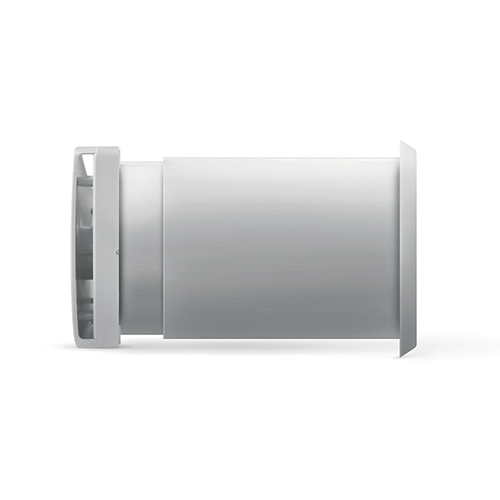

  • PVC shockproof telescopic body.
  • Ceramic heat exchanger with efficiency >90%.
  • G3 filter.
  • Flow rectifier to grant higher performances, only for 160mm models.
  • Splash proof protection class: IPX4.



Electric Features
  • Power supply 230V~ 50Hz.
  • Ambient temperature 0°C – 45°C.
  • Automatic function: the extract and supply air are automatically alternated.
  • Manual function: either extract or supply mode can be selected.
  • Season setting: thanks to the knob it is possible to optimise the interval of the automatic mode according to the indoor – outdoor temperature difference.
  • 2 sizes: 4 inch unit covers 22m³ or 6 inch unit covers 50 m³.
  • Splash proof protection class: IP20.
  • Simultaneous control of up to 4 units.

Data Sheet

EcoComfort Air
